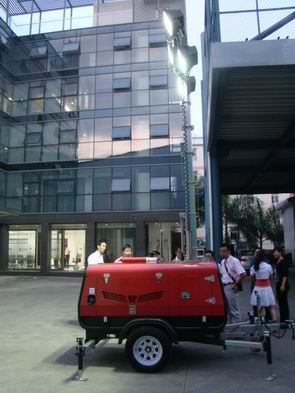

GTLT 09HVL 4000
Can be used for outdoor area, especially in mining area. It is highly reliable with hydraulic mast and floodlights which can be easy controlled to adjust the illuminated area.The mast can be extended to 10-11 meters fully.
GTLT 09HVL 4000
| Standard Equipment | 4HVL 4000 |
| Length (mm) | 3420(2100,disassembling the tow bar ) |
| Width (mm) | 1620 |
| Height (mm) | 2460 |
| Mast Heigth(m,Fully Extended) | 9 |
| Weight (Dry,kg) | 1350 |
| Engine model | D905-BG(Kubota,Japan) |
| Frequency(Hz) | 60 |
| Speed(rpm) | 1800 |
| Continued Power(KW) | 7 |
| Number of Cylinders | 3 |
| Diesel Engine Characters | 4 cycle, In line, Watercooled Diesel |
| Combustion Type | Direct Injection |
| Engine Aspiration | Natural |
| Alternator | Brushless & Single phase(Linz,Italy) |
| Rating Voltage (V) | 230 |
| Alternator Insulation | H |
| Fuel Tank Type | Bunded Tank |
| Fuel Tank Capacity | 120liters (31 US Gallons) |
| Fuel Tank Operating Hours | 85hours |
| Type of Lights | Metal Halide Floodlight (GEWISS) |
| Number & Power of Lights | 4×1000W |
| Mast Extension | Hydraulic operation |
| Number of Mast Section | 7 |
| Mast Erection Time | <30 Seconds |
| Mast Rotation | 330° Manual Operation |
| Light Bar Tilt | 90° DC Electric operation |
| Manual Stabilising Support | Adjustble leveling jack,4-point stance |
| Suspension & Braking System | Leaf spring axle with drum brake |
| Hitch | Ball or O ring & stable hitch in height |
| Tire Rim Size | 16” |
| Output Sockets | 1 Piece (230V,10A) |
| Acoustic Pressure | 72dB(A) at 7 meters away |
| Stabilizing legs | Hydraulic |
| Applicable for | |||||||||
| Applicable for most of inside and outside place. Asphalt paving, disaster relief, repair and maintenance of water supply, gasoline, tunnels, and mines, waste disposal, parking lot, wharf, civil and military airport, as well as various illuminations for combat readiness. | |||||||||
| Installed with generator, the light tower works with convenient power supply | |||||||||
| Night construction condition has been improved to raise working efficiency and speed. |
| Characteristic: | |||||||||
| Composed by four 1000W Metal halides, have high lumen output, good color rendition and overall lighting, long lamp life. | |||||||||
| Lamp frame can rotate horizontal and freely, each lamp can vertical adjust lonely. | |||||||||
| Telescope mast use three section, automatic lift. mast with staleness valve, avoid to drop suddenly. Mast can extend to 7.2 meters（height can be change）. | |||||||||
| Installed with generator, one tank gasoline can last 13 hours. If use city power, it’s long term. | |||||||||
| Equipped with big tyres and brake system, increasing its capacity to climb and trail to move on uneven road. Big tyres also increase touchdown areas to oppose wind beating. | |||||||||
| Using waterproof electrical boxes to avoid rain, suit for bad condition | |||||||||
| To satisfy customer requirement, we can produce this tower according to your requirement, such as lamp quantity, power, mast height, generator etc. |
