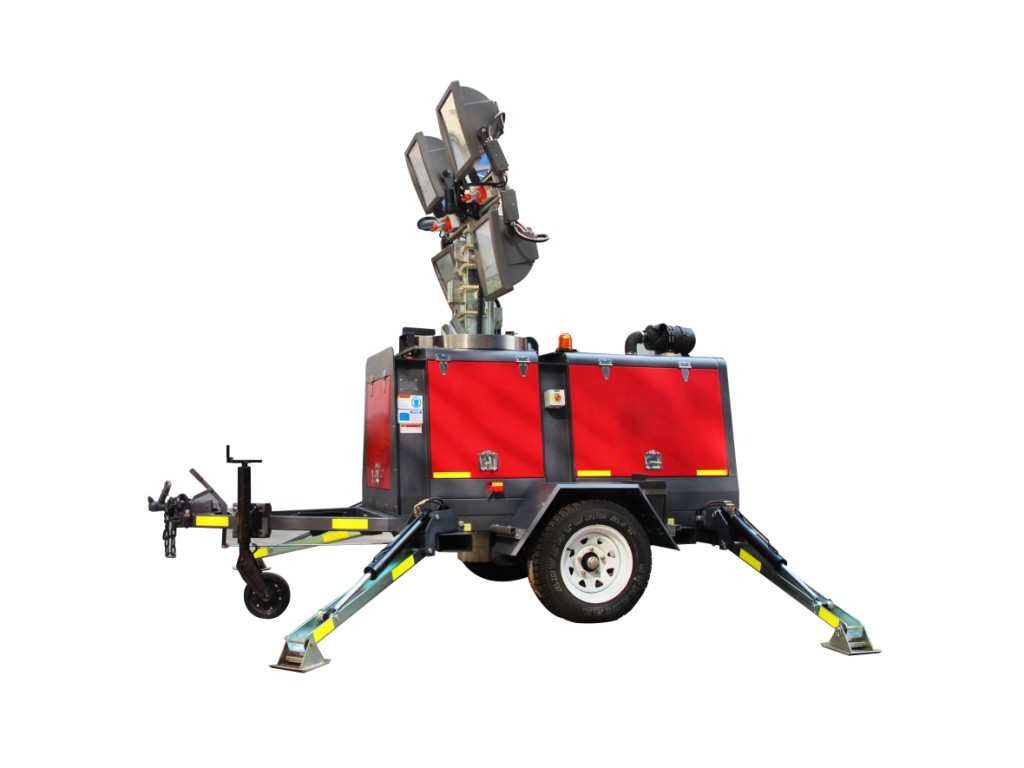

GTLT 09HVP 4000
GTLT 09HVP 4000

Can be used for outdoor area, especially in mining area. It is highly reliable with hydraulic mast and floodlights which can be easy controlled to adjust the illuminated area.The mast can be extended to 10-11 meters fully.

GTLT 09HVP 4000



Standard Equipment
Length (mm) 3420(2100,disassembling the tow bar )
Width (mm) 1620
Height (mm) 2460
Mast Heigth(m,Fully Extended) 9
Weight (Dry,kg) 1350
Engine model D905-BG(Kubota,Japan)
Frequency(Hz) 50
Speed(rpm) 1500
Continued Power(KW) 6
Number of Cylinders 3
Diesel Engine Characters 4 cycle, In line, Watercooled Diesel
Combustion Type Direct Injection
Engine Aspiration Natural
Alternator Brushless & Single phase(Linz,Italy)
Rating Voltage (V) 230
Alternator Insulation H
Fuel Tank Type Bunded Tank
Fuel Tank Capacity 120liters (31 US Gallons)
Fuel Tank Operating Hours 85hours
Type of Lights Metal Halide Floodlight (GEWISS)
Number & Power of Lights 4×1000W
Mast Extension Hydraulic operation
Number of Mast Section 7
Mast Erection Time <30 Seconds
Mast Rotation     330°  Manual Operation
Light Bar Tilt  90° DC Electric operation
Manual Stabilising Support Adjustble leveling jack,4-point stance
Suspension & Braking System Leaf spring axle with drum brake
Hitch  Ball or O ring & stable hitch in height
Tire Rim Size 16”
Output Sockets 1 Piece (230V,10A)
Acoustic Pressure 72dB(A) at 7 meters away


Applicable for
l        Applicable for most of inside and outside place. Asphalt paving, disaster relief, repair and maintenance of water supply,
gasoline, tunnels, and mines, waste disposal, parking lot, wharf, civil and military airport, as well as various illuminations
for combat readiness.
l        Installed with generator, the light tower works with convenient power supply
l        Night construction condition has been improved to raise working efficiency and speed.


Characteristic:
l        Composed by four 1000W Metal halides, have high lumen output, good color rendition and overall lighting, long lamp life.
l        Lamp frame can rotate horizontal and freely, each lamp can vertical adjust lonely.
l        Telescope mast use three section, automatic lift. mast with staleness valve, avoid to drop suddenly. Mast can extend to
7.2 meters
height can be change.
l        Installed with generator, one tank gasoline can last 13 hours. If use city power, it’s long term.
l        Equipped with big tyres and brake system, increasing its capacity to climb and trail to move on uneven road. Big tyres also
increase touchdown areas to oppose wind beating.
l        Using waterproof electrical boxes to avoid rain, suit for bad condition
l        To satisfy customer requirement, we can produce this tower according to your requirement, such as lamp quantity, power,
mast height, generator etc.
