Overall Dimention 11000×2000×800㎜
Platform Dimention 10000×2000×800
Max. Payload 10000
Max driving speed 15km/h

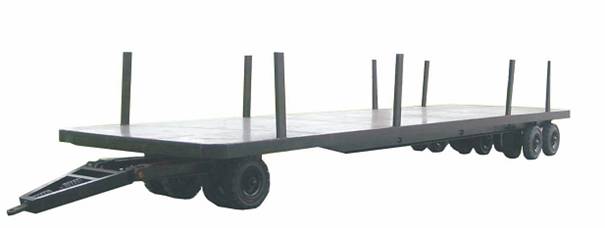

Frame Descriptions
Overall steel frame structure, all-round slewing, steel axle system, 8 sets of solid tyres 21*8-9.
Payload platform size 10000mm*2000mm
Main structure made by H-section steel 25#, strengthen beam by Channel steel steel 25#, crossgirder by Channel steel steel 14# /10#, and boundary beam by Channel steel steel 14#, platform by corrugated steel plate 10# 5mm thicknes; steel beams are all built as frame construction to carry the rated payload.
Driving device is steel axle system, single wheel with short shaft, good to adapt to the floor.

Steering Device

With all-round front steel, and block bearing, safe and reliable.
The 21*8-9 solid tyres can ensure the payload and suitable for working situation and lifespan requirement from the ports, industry sites, etc.


11 Jacks on each long side, can be dismantled,to prevent cargo falls.
Colored in yellow.
Desing and making process including the surface treatment and painting follow the Chiense National Standard.
