platform dimension: 2800mm*1300mm
platform dimension: 2800mm*1300mm
max. Loading capacity: 3T
climbing supporting feet
Mechanical brake & oil brake
The ladder on mesh plate ≤ 2m
Tire size ：205R 14C TL car tire
GPPC 3

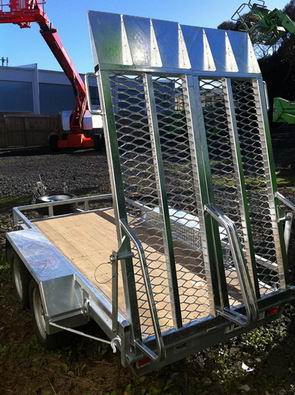

Trailer For Scissor Lift
| Model | GPPC 3 | Specification of tire | TL205/70R14 High-speed tires |
| Rated weight（kg） | 3 | Brake pattern | Electric brake, hand brake |
| climbing angle | less than 14 degree | Height of Platform（mm） | 500 |
| Carriage inner dimension Length*width*height（mm） |
2800mm*1300mm | Matched tractor | 12-25 |
| max. Loading capacity | 3T | Wheel number | 4 |
| The ladder on mesh plate | ≤ 2m | superficial treatment | Painting |
long-distance travelling, such as vehicles, defective vehicles, engineering machinery,etc.
Completely configure, it runs steadily. the outlook is artistic, durable in use, working environment is widespread.
The foldaway crawl ladder for the rear design will be advantageous for the loading .
It can match with all kinds of vehicles ,such as automobiles, tractors and so on .
The form of damping: torque force axle or spring leaf
The form of traction: tripod stand traction(cusion spring)
Manual shaking lifter is the front part design.
The chosen brake is mechanical , handbrake , air brake, oil brake and electronic brake.
Surface treatment: derusting with large size shot blast machine, to change welding stress,
antirusting paint, finishing paint, acid pickling, hot dipping.
The process of welding: carbon dioxide MIG welding.
The form of transportation: parts and components.
The loading capacity is 2-5tons , we can provide tyres according to the carrying capacity.
