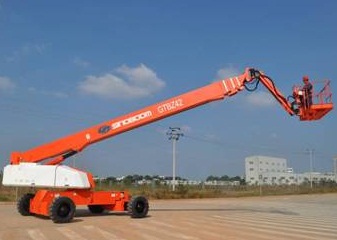

GTBZ 40
Platform height 39.2m
Working height 41.2m
Outreach 24.3m
Payload 250kg
Cummins Engine
4WD
Options available for:
Foamed filled tyre
Oscillating axle
Engine cool boot
AC Power to platform
Cool boot
GTBZ 40
|
Models
|
GTBZ40
|
|
|
Dimensions
|
||
|
Platform height max.
|
129 ft (39.3 m)
|
|
|
Working height max.
|
135 ft (41.3 m)
|
|
|
Horizontal reach max.
|
80 ft (24.38 m)
|
|
 Length - stowed |
45 ft 1 in (13.75 m)
|
|
 Width - stowed |
8 ft 2 in (2.49 m)
|
|
 Height - stowed |
10 ft 1 in (3.08 m)
|
|
 Wheelbase |
12 ft 5 in (3.81 m)
|
|
|
Ground clearance
|
2 ft 1 in (0.65 m)
|
|
|
Platform size (L*W*H)
|
6 ft*2 ft 5 in*3 ft 6 in (1.83 m*0.76 m*1.1 m)
|
|
|
Productivity
|
||
|
Max. platform occupancy
|
2
|
|
|
Lift capacity
|
750 lbs (340 kg) - Unlimited
1058 lbs (480 kg) - Limited |
|
|
Turntable rotation
|
360° continuous
|
|
|
Platform rotation
|
160°
|
|
|
Drive speed - stowed
|
0～2.7 mph (0~4.4 km/h)
|
|
|
Drive speed - raised
|
0～0.7 mph (0~1.1 km/h)
|
|
|
Gradeability
|
40%
|
|
|
Turning radius - inside
|
14 ft 3 in (4.37 m)
|
|
|
Turning radius - outside
|
22 ft 3 in (6.81 m)
|
|
|
Turntable tailswing
|
5 ft 5 in (1.68 m)
|
|
|
Max. allowable slope
|
3°
|
|
|
Max. noise on normal use
|
82 dB(A)
|
|
|
Drive & steer model
|
4 WD * 4 WS
|
|
|
Tire size / type
|
385/65 - 24 / 10 solid
|
|
|
Power
|
||
|
Power source
|
Original Cummins/Perkins Engine
|
|
|
Fuel tank capacity
|
52.83 gal (200 L)
|
|
|
Control voltage
|
12 VDC
|
|
|
Power
|
60 KW
|
|
|
Weight
|
||
|
Overall weight
|
47532 lbs (21560 kg)
|
|
|
Standards Compliance
|
CE/ ISO/ ADR/ ARAMCO
|
|
| Standard technical features | Options | ||
| ● Diesel engine powered | ● Hydraulic generator | ||
| ● Can Bus Technology with less hoses | ● Hydraulic welder | ||
| ● Proportional control | ● Hydraulic compressor | ||
| ● Platform & ground control panel | ● Hydraulic water pump | ||
| ● 360° continuous turntable rotation | ● AC power on the platform | ||
| ● 160° hydraulic platform rotation | ● Platform work lights | ||
| ● Automatic brake system | ● Anti-crash device on platform | ||
| ● Self-leveling platform | ● Foam-filled tyres | ||
| ● Onboard visible diagnostic system | |||
| ● Cylinder holding valve | |||
| ● Controller calibration | |||
| ● Self-lock gate on platrorm | |||
| ● Anti-restart engine protection | |||
| ● Emergency stop button | |||
| ● European III emission engine | |||
| ● Hydraulic oil cooler | |||
| ● Flashing beacon | |||
| ● All motion alarm | |||
| ● Horn | |||
| ● Hour meter | |||
| ● Overload sensor with alarm | |||
| ● Tilt alarm | |||
| ● Solid tyre | |||
| ● Automatic extendable wheel axles | |||
| ● 4WD | |||
| Benefit for the applications | |||
| ● Telescopic boom type provides big working range to cover wide access area | |||
| ● High strength steel for booms for reduced weight with improved security. | |||
| ● Easy operating by joysticks for driving,steering, booms'up-down and turntable rotation | |||
| which greatly improve the efficiency for working at height | |||
| ● Full scale gradient control make precise positioning for the operators when approaching | |||
| ● Self-leveling platform allow operation at ease | |||
| ● Rough terrain performance as 45% gradeability | |||
| ● Well hoses protection to prevent accident or help reducing replacing cost | |||
| ● Slide out engine tray to easily access for maintenance | |||
| ● Slide-out battery trays facilitate servicing | |||
| ● On-board visible diagnosis helps trouble shooting or provides inter-action between | |||
| machines and operators at site to suit the working conditions | |||
| ● Security Device meeting EU standards in details to ensure safety | |||
| Benefit for the transportation | |||
| ● Machine sizes suit the trailer chassis standards | |||
| ● Well-distributed weight distribution, to avoid uneven or lifting problems | |||
| ● Drivable onto the trailer through the ramp | |||
| Standards compliance | |||
| AS1418-2011, EN280-2010, JG/T 5300 | |||
| Others | |||
| Self-lubricating bearing | |||
| Axis-pin and bushing-block for easy maintenance | |||
| Galvanized chrome-plated | |||
| R&D designed for 10 years usage | |||
