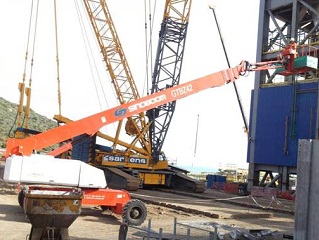

GTBZ 42

Current position：Home>>Product

Product

GTBZ 42

Platform height 41.6m
Working height 43.6m
Outreach 24.3m
Payload 250kg
Cummins Engine
4WD
Options available for:
Foamed filled tyre
Oscillating axle
Engine cool boot
AC Power to platform
Cool boot

GTBZ 42

Models	GTBZ42J
Dimensions
Platform height max.	137 ft (41.6 m)
Working height max.	143 ft (43.6 m)
Horizontal reach max.	80 ft (24.38 m)
Length - stowed	43 ft (13.1 m)
Width - stowed	8 ft 2 in (2.49 m)
Height - stowed	10 ft (3.05 m)
Wheelbase	12 ft 5 in (3.81 m)
Ground clearance	2 ft 1 in (0.65 m)
Platform size (LWH)	8 ft3 ft3 ft 7 in (2.44 m0.91 m1.14 m)
Productivity
Max. platform occupancy	2
Lift capacity	551 lbs (250 kg) - Unlimited 1058 lbs (480 kg) - Limited
Turntable rotation	360° continuous
Platform rotation	160°
Drive speed - stowed	0～2.7 mph (0~4.4 km/h)
Drive speed - raised	0～0.7 mph (0~1.1 km/h)
Gradeability	40%
Turning radius - inside	14 ft 3 in (4.37 m)
Turning radius - outside	22 ft 3 in (6.81 m)
Turntable tailswing	5 ft 5 in (1.68 m)
Max. allowable slope	3°
Max. noise on normal use	82 dB(A)
Drive & steer model	4 WD * 4 WS
Tire size / type	385/65 - 22.5 16PR
Power
Power source	Original Cummins/Perkins Engine
Fuel tank capacity	52.83 gal (200 L)
Control voltage	12 VDC
Power	60 KW
Weight
Overall weight	49009 lbs (22230 kg)
Standards Compliance	CE/ ISO/ ADR/ ARAMCO

Standard technical features		Options
	● Diesel engine powered	● Hydraulic generator
	● Can Bus Technology with less hoses	● Hydraulic welder
	● Proportional control	● Hydraulic compressor
	● Platform & ground control panel	● Hydraulic water pump
	● 360° continuous turntable rotation	● AC power on the platform
	● 160° hydraulic platform rotation	● Platform work lights
	● Automatic brake system	● Anti-crash device on platform
	● Self-leveling platform	● Foam-filled tyres
	● Onboard visible diagnostic system
	● Cylinder holding valve
	● Controller calibration
	● Self-lock gate on platrorm
	● Anti-restart engine protection
	● Emergency stop button
	● European III emission engine
	● Hydraulic oil cooler
	● Flashing beacon
	● All motion alarm
	● Horn
	● Hour meter
	● Overload sensor with alarm
	● Tilt alarm
	● Solid tyre
	● Automatic extendable wheel axles
	● 4WD ● Jib

Benefit for the applications
	● Telescopic boom type provides big working range to cover wide access area
	● High strength steel for booms for reduced weight with improved security.
	● Easy operating by joysticks for driving,steering, booms'up-down and turntable rotation
	which greatly improve the efficiency for working at height
	● Full scale gradient control make precise positioning for the operators when approaching
	● Self-leveling platform allow operation at ease
	● Rough terrain performance as 45% gradeability
	● Well hoses protection to prevent accident or help reducing replacing cost
	● Slide out engine tray to easily access for maintenance
	● Slide-out battery trays facilitate servicing
	● On-board visible diagnosis helps trouble shooting or provides inter-action between
	machines and operators at site to suit the working conditions
	● Security Device meeting EU standards in details to ensure safety

Benefit for the transportation
	● Machine sizes suit the trailer chassis standards
	● Well-distributed weight distribution, to avoid uneven or lifting problems
	● Drivable onto the trailer through the ramp

Standards compliance
	AS1418-2011, EN280-2010, JG/T 5300

Others
	Self-lubricating bearing
	Axis-pin and bushing-block for easy maintenance
	Galvanized chrome-plated
	R&D designed for 10 years usage
