GTJZ1012

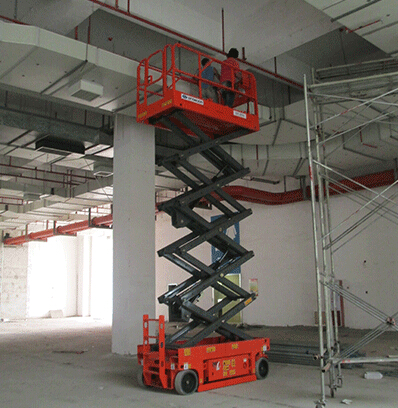

GTJZ1012 GTJZ1012 Self-propelled hydraulic scissor lifts are mostly applied to flat indoor or outdoor. The body is pleasing to eye and flexible to operate. The main engine can travel and turn automatically. It features imported hydraulic components, ex
GTJZ1012
|
Models
|
GTJZ1012
|
  |
|
Dimensions
|
||
 Platform height max. |
33 ft (10 m)
|
|
|
Working height max.
|
39 ft (12 m)
|
|
 Platform extended |
3 ft (0.9 m)
|
|
 Length - stower |
7 ft 8 in (2.39 m)
|
|
|
Width - stower
|
3 ft 8 in (1.15 m)
|
|
 Height - folding guardrails |
8 ft 1 in (2.48 m)
|
|
|
Height - rails folded
|
6 ft 1 in (1.86 m)
|
|
|
Height - fixed rails
|
8 ft 1 in (2.48 m)
|
|
 Wheelbase |
6 ft (1.85 m)
|
|
|
Ground clearance
|
3 in (0.1 m)
|
|
|
Platform size (L*W*H)
|
7 ft 4 in*3 ft 8 in*3 ft 6 in (2.25 m*1.15 m*1.1 m)
|
|
|
Productivity
|
||
|
Max. platform occupancy
|
2 (indoor) 1 (outdoor)
|
|
|
Lift capacity
|
705 lbs (320 kg)
|
|
|
Lift capacity - extension deck
|
265 lbs (120 kg)
|
|
|
Drive speed - stowed
|
0～2.0 mph (0~3.2 km/h)
|
|
|
Drive speed - raised
|
0～0.5 mph (0~0.8 km/h)
|
|
|
Gradeability
|
25%
|
|
|
Turning radius - inside
|
0 ft (0 m)
|
|
|
Turning radius - outside
|
7 ft 7 in (2.35 m)
|
|
|
Raise / Lower speed
|
55 /42 s
|
|
|
Controls
|
Proportional
|
|
|
Drives
|
Dual front wheel
|
|
|
Brakes
|
Dual rear wheel
|
|
|
Tire size (solid non-marking)
|
15 in * 5 in (380 mm * 125 mm)
|
|
|
Power
|
||
|
Power source
|
24V DC (4*6V, 225Ah batteries)
|
|
|
Hydraulic system capacity
|
4.76 gal (18 L)
|
|
|
Power
|
3 KW
|
|
|
Weight
|
||
|
Indoor
|
5247 lbs (2380 kg)
|
|
|
Indoor & outdoor general
|
5666 lbs (2570 kg)
|
|
|
Standards Compliance
|
CE/ ISO/ ADR/ ARAMCO
|
|
| Standard technical features | Options available | ||
| ● Self-propelled | ● Overload sensor with alarm | ||
| ● Can be drived at full height | ● AC power on the platform | ||
| ● Automatic braking system | ● Platrom work lights | ||
| ● Proportional controls | ● Airline to the platfrom | ||
| ● Automatic pothole protection | ● 4*225Ah Battery | ||
| ● Self-lock gate on platform | ● Leakage protection | ||
| ● Non marking tyre | ● Portuguese manuals | ||
| ● Emergency stop button | ● Portuguese Warning marks | ||
| ● Emergency lowering system | ● Onboard diagnostic system | ||
| ● Cylinder holding valve | |||
| ● Tilt sensor with alarm | |||
| ● All Motion Alarm | |||
| ● Horn | |||
| ● Hour meter | |||
| ● Safety brackets | |||
| ● Forklift pockets | |||
| ● Foldable guardrails | |||
| ● Extendable platform | |||
| ● Charger protection | |||
| ● Flashing beacon | |||
| ● 2WD | |||
| Benefit for the applications: | |||
| ● Roll-out platform provides spacial-wise workspace | |||
| ● Folded guardrails helps easy access to narrow doorway at job site or for transportations | |||
| like container or elevator | |||
| ● 7 indoor models are available between working height at 8m to 12m | |||
| ● Compact design with 0 turn radius facilitates working in confined area | |||
| ● 25% gradeablility for driving on slopes | |||
| ● Swing-out tray on scissis for easy maintenance | |||
| ● Portable board diagnosis helps troubleshooting,also making the oprator easier to reset | |||
| the operation conditions | |||
| Standards compliance | |||
| AS1418-2011, EN280-2010, JG/T 5100 | |||
