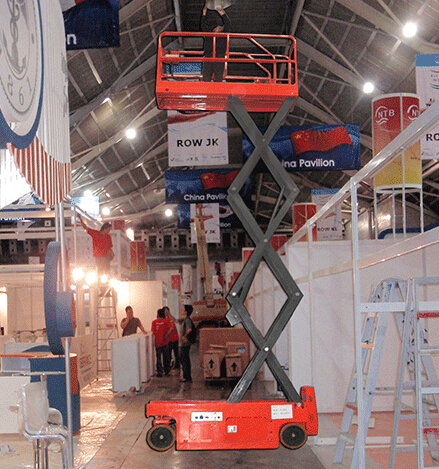

GTJZ0608S
Platform height 5.8M
Working height 7.8M
Overall length 2.19M
GTJZ0608S
|
Models
|
GTJZ0608S
|
  |
|
Dimensions
|
||
 Platform height max. |
19 ft (5.8 m)
|
|
|
Working height max.
|
25 ft (7.8 m)
|
|
 Platform extended |
3 ft (0.9 m)
|
|
 Lengt - stowed |
5 ft 8 in (1.775 m)
|
|
|
Width - stowed
|
2 ft 5 in (0.76 m)
|
|
 Height- stowed |
6 ft 8 in (2.06 m)
|
|
 Wheelbase |
4 ft 3 in (1.315 m)
|
|
|
Ground clearance
|
3 in (0.07 m)
|
|
|
Platform size(L*W*H)
|
5 ft 4 in*2 ft 5 in*3 ft 6 in (1.64 m*0.76 m*1.1 m)
|
|
|
Productivity
|
||
|
Max. platform occupancy
|
2
|
|
|
Lift capacity
|
507 lbs (230 kg)
|
|
|
Lift capacity - extension deck
|
265 lbs (120 kg)
|
|
|
Driving speed - stowed
|
0～2.5 mph (0~4 km/h)
|
|
|
Driving speed - raised
|
0～0.5 mph (0~0.8 km/h)
|
|
|
Gradeability
|
30%
|
|
|
Turning radius - inside
|
0 ft (0 m)
|
|
|
Turning radius - outside
|
4 ft 9 in (1.48 m)
|
|
|
Raise / Lower speed
|
18/ 25 s
|
|
|
Controls
|
Proportional
|
|
|
Drives
|
Dual front wheel
|
|
|
Brakes
|
Dual rear wheel
|
|
|
Tire size (solid non-marking)
|
12 in * 5 in (305 mm * 115 mm)
|
|
|
Power
|
||
|
Power source
|
24V DC (4*6V, 225Ah batteries)
|
|
|
Hydraulic system capacity
|
4.76 gal (18 L)
|
|
|
Power
|
3 KW
|
|
|
Weight
|
||
|
Indoor
|
2928 lbs (1328 kg)
|
|
|
Standards Compliance
|
CE/ ISO/ ADR/ ARAMCO
|
|
| Standard technical features | Options available | ||
| ● Self-propelled | ● Overload sensor with alarm | ||
| ● Can be drived at full height | ● AC power on the platform | ||
| ● Automatic braking system | ● Platrom work lights | ||
| ● Proportional controls | ● Airline to the platfrom | ||
| ● Automatic pothole protection | ● 4*225Ah Battery | ||
| ● Self-lock gate on platform | ● Leakage protection | ||
| ● Non marking tyre | ● Portuguese manuals | ||
| ● Emergency stop button | ● Portuguese Warning marks | ||
| ● Emergency lowering system | ● Onboard diagnostic system | ||
| ● Cylinder holding valve | |||
| ● Tilt sensor with alarm | |||
| ● All Motion Alarm | |||
| ● Horn | |||
| ● Hour meter | |||
| ● Safety brackets | |||
| ● Forklift pockets | |||
| ● Foldable guardrails | |||
| ● Extendable platform | |||
| ● Charger protection | |||
| ● Flashing beacon | |||
| ● 2WD | |||
| Benefit for the applications: | |||
| ● Small turning radius: The outside turning radius of the tires is 6 ft 5 in (1.98) and the inside turning radius is 0 ft 0(m). | |||
| ● Large load capacity: The maximal load capacity reaches 705 lbs (320 kg) and the load capacity | |||
| of the extended platform is up to 265 lbs (120kg). | |||
| ● Sufficient electric power: Trojan batteries imported from USA are used with four groups with capacity up to 225Ah; | |||
| ● Advanced technology: Adpot DeltaTech control system and fault self-diagnosi technique,with anti-collision transducer option. | |||
| ● High reliability: Imported key components and the waterproof capacity of major with electric components is up to IP65. | |||
| ● Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators. | |||
| ● Easy maintenance: Dual revolving doors, easy to maintain. | |||
| ● Energy-saving and environment-friendly: Low noise, no pollution,and environmental protection standard. | |||
