GTJZ1212E
GTJZ1212E

Platform height 38 ft
Work height 44 ft
Power source 24V DC

GTJZ1212E

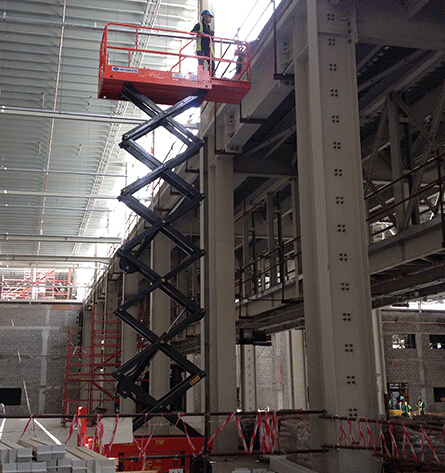

    GTJZ1212E Self-propelled Electric Scissor lifts are mostly applied to flat indoor or outdoor. The body is pleasing to eye and flexible to operate. The main engine can travel and turn automatically. It features imported hydraulic components, explosion-proof pipe unit and emergency descending switch; motor driven ascending, descending and travelling function; low in noises and free of air pollution; durable, chip-free, skid-proof and traceless tires without scratching the ground; optimized product control mode and procedure with the premise of safety, bringing much more humanized operation.

    • 1. Small turning radius: The outside turning radius of the tires is 7 ft 7 in (2.35 m) and the inside turning radius is0 ft (0 m).
      2. Large load capacity: The maximal load capacity reaches 705 lbs (320 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg).
      3. Sufficient electric power: Trojan batteries imported from USA are used with four groups in series, single cell capacity is up to 260Ah; 5-7h duration in normal operation.
      4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
      5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
      6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
      7. Easy maintenance: Dual revolving doors, easy to maintain.
      8. Energy-saving and environment-friendly: Low noise, no pollution, energy-saving and environmental protection.
