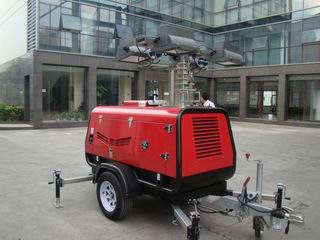

GTLT 09HVL 6000/09HVP 6000
GTLT 09HVL 6000/09HVP 6000

Mast Heigth 9m;
Composed by four 1400W Metal halides
Lamp frame can rotate horizontal and freely
Equipped with big tyres and brake system
Using waterproof electrical boxes to avoid rain

GTLT 09HVL 6000/09HVP 6000



Standard Equipment

GTLT 09
HVL 4000

GTLT 09
HVP 4000

GTLT 09
HVL 6000

GTLT 09
HVP 6000

Length (mm)

3420(2100,the tow bar be retracted or detached )

Width (mm)

1620

1620

Height (mm)

2460

2460

Mast Heigth(m, Full Extended)

9

9

Weight (Dry,kg)

1350

1350

Engine model

D905-BG (Kubota,Japan)

D1105-BG (Kubota)

Frequency(Hz)

50

60

50

60

Speed(rpm)

1500

1800

1500

1800

Continued Power(KW)

6

7

9.5

11.5

Number of Cylinders

3

3

Diesel Engine Characters

4 cycle, In line,

Watercooled Diesel

4 cycle, In line,

Watercooled Diesel

Combustion Type

E-TVCS

E-TVCS

Engine Aspiration

Natural

Natural

Alternator

Brushless & Single
phase(Linz,Italy)

Brushless & Single
phase(Linz,Italy)

Rating Voltage (V)

230

231

Alternator Insulation

H

H

Fuel Tank Type

Bunded Tank

Bunded Tank

Fuel Tank Capacity

120liters (31 US Gallons)

120liters (31 US Gallons)

Fuel Tank Operating Hours

85 hours

56 hours

Type of Lights

Metal Halide Floodlight

Metal Halide Floodlight

Rectangle (E40/E39,
GEWISS in Germany)

Oval,Double ends, Local
Chinese brand

Number & Power of Lights

4×1000W

4×1500W

Mast Extension

Hydraulic operation

Hydraulic operation

Number of Mast Section

7

7

Mast Erection Time

<30 Seconds

<30 Seconds

Mast Rotation

    330°  Manual Operation

    330°  Manual Operation

Light Bar Tilt

 90° DC Electric operation

 90° DC Electric operation

Control system

HGM170 / DSE702AS

HGM170 / DSE702AS

Manual Stabilizing Support

Adjustable leveling
 jack,4-point stance

Adjustable leveling
 jack,4-point stance

Suspension & Braking System

Leaf spring axle with drum
brake

Leaf spring axle with drum
brake

Hitch

Ball or O ring & stable hitch
 in height

Ball or O ring & stable hitch
in height

Tire Rim Size

16”

16”

Output Sockets

1 Piece (230V,10A)

1 Piece (230V,10A)

Acoustic Pressure

72dB(A) at 7 meters away

72dB(A) at 7 meters away

Max. load quantity in a 40' container (sets)

7

7

Optional Equipment & upgrades

Cold weather staring kit

Kubota / Kohler / Perkins

Kubota

Kubota / Kohler / Perkins

Kubota

Automatic light controller

SUNIGHT002

SUNIGHT002

Trailer suspension system

Hexagonal rubber axle

Hexagonal rubber axle

Tire & rim size

14"

14"

Ipnput socket & MTS

1 Piece (230V,32A)

1 Piece (230V,32A)

Tow bar

Adjustable hitch in height

Adjustable hitch in height

Stabilizing legs

Hydraulic

Hydraulic

 Applicable for:

   Applicable for most of inside and outside place. Asphalt paving, disaster relief, repair
and maintenance of water supply, gasoline, tunnels, and mines, waste disposal, parking
lot, wharf, civil and military airport, as well as various illuminations for combat readiness.

   Installed with generator, the light tower works with convenient power supply

   Night construction condition has been improved to raise working efficiency and speed.

Characteristic:

   Composed by four 1000W or 1400W Metal halides, have high lumen output, good
color rendition and overall lighting, long lamp life.

   Lamp frame can rotate horizontal and freely, each lamp can vertical adjust lonely.

Telescope mast use eight sections, automatic lift. Mast is with staleness valve, avoid
to drop suddenly. Mast can extend to 9 metersheight can be customized.

   Installed with generator, one tank gasoline can last 85 or 45 hours, subject to different
 lights.

   Equipped with big tyres and brake system, increasing its capacity to climb and trail to
 move on uneven road. Big tyres also increase touchdown areas to oppose wind beating.

   Using waterproof electrical boxes to avoid rain, suit for bad condition

Some details on the machines

The safe and reliable 8-section telescopic mast powered by hydraulic ram can be
extended to 9 meters height fully.

The light bar can be adjusted from horizontal to vertical by the control panel operation.

The hydraulic one-way value with electric control can keep the hydraulic ram at any
 position for long time.

The mast can rotate within 330 degree manually

The inertia braking system can mostly reduce the collision when the vehicle is braking

The heavy-duty muffler makes the noise under 72 Db(A) at 7 meters away

The galvanized mast and the power coated canopy suit the outdoor environment for a
long time

The electrical devices of the lights are fitted in the weatherproof canopy, and it’s easy
 to fix

The most cable can be retracted in the protective stainless steel tube

The high-quality and multi-fault protection generator with low-emission diesel engine
and brushless alternator can power all the lights stably and continuously

Compact designed for easy loading. The maximum 7 sets in a 40 feet container.

The AL-KO Hexagon rubber suspension system (or option) is suitable for
 rough terrain, and the maintenance-free axis’s service lift can be at least 20 years.

Four manual legs of individual operation are able to support stably and reliably even
on rough ground, so the lighting tower can also work in the 9-grade wind weather.

The base frame with fully bunded tank helps to avoid fuel leakage.
