Overall dimension(mm) 5500*2050*2350
Carriagedimension( mm) 4000*1500*220
Height of floor( mm) 560mm
climbing angle : less than 14 degree
max. Loading capacity: 3T
jack wheel
Warning marks
JW-CT25-1(E)
| model | JW-CT25-1(E) | JW-CT25-2(E) | JW-CT25-3(E) | |
| load (kg) | 2500 | 2500 | 2500 | |
| Dead weight (kg) | 700 | 750 | 820 | |
| Overall dimension(mm) | 5500*2050*2350 | 5600*2350*2350 | 6100*2546*840 | |
| Carriagedimension( mm) | 4000*1500*220 | 4000*1800*220 | 4500*2000*220 | |
| Height of floor(mm) | 560mm | 560mm | 622mm | |
| tire | 205/75D14 6PR/4 | |||
| Wheelspan(mm) | 1850 | 2150 | 2350 | |
| axle | torque force | |||
| Max speed(km/h) | 70 | |||
| brake | Biaxial electric brake and hand brake | front electric brake and hand brake | ||
| Unload type | no | |||
| Packing size | 4200*2050*500 | 4200*2350*500 | 4600*2550*500 | |
| Containerquantity(40GP) | 16 | |||

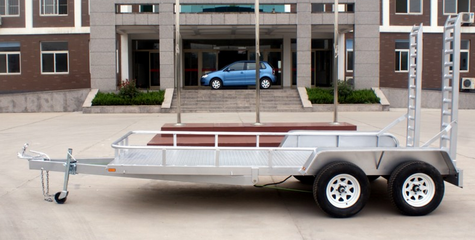

long-distance travelling, such as vehicles, defective vehicles, engineering machinery,etc.
Completely configure, it runs steadily. the outlook is artistic, durable in use,
working environment is widespread.
The foldaway crawl ladder for the rear design will be advantageous for the loading .
It can match with all kinds of vehicles ,such as automobiles, tractors and so on .
The form of damping: torque force axle or spring leaf
The form of traction: tripod stand traction(cusion spring)
Manual shaking lifter is the front part design.
The chosen brake is mechanical , handbrake , air brake, oil brake and electronic brake.
Surface treatment: derusting with large size shot blast machine, to change welding stress,
antirusting paint, finishing paint, acid pickling, hot dipping.
The process of welding: carbon dioxide MIG welding.
The form of transportation: parts and components.
The loading capacity is 2-5tons , we can provide tyres according to the carrying capacity.
